Universal push-button module Universal, 4-gang, F40

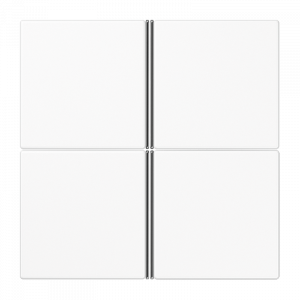

For cover kit 4-gang, ref.-no.: .. 404 TSA ..
for cover 4-gang with symbols, ref.-no.: .. 404 TSAP ..
can be extended by means of a push-button extension module, ref.-no.: 409.. TSEM
Adapter frames are included in delivery:
ref.-no. LS 4 AR for LS range (pre-mounted) and ref.-no. CD 4 AR for CD range.
AS / A ranges without adapter frame.
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Push-button
Product type: 4-gang push-button
1 blue LED: operation indication
8 red LED: status indication

Intended use
Operation of loads, e.g. light on/off, dimming, blinds up/down, brightness values, temperatures, calling up and saving light scenes, etc.
Installation in flush box with dimensions according to DIN 49073

Product characteristics
KNX medium: TP 256
Push-button functions switching, dimming, controlling blinds, value transmitter, calling up light scenes etc.
Measurement of room temperature
To be completed with cover kit
Two red status LEDs per button
One blue operation LED as floor pilot light and to indicate the programming status
Integrated bus coupling unit
One, two or three functions per button
Push-button function or rocker function, vertical or horizontal
Connection for a push-button extension module, 1-4 gang
Including transparent cover kit for operation on construction site without design covers
